A used 2025 RAM ProMaster is a working van, and buying one comes down to three choices: which chassis, which roof, and which wheelbase. Get those right and the van does the job for years; get them wrong and you are renting a trailer twice a month.
Every 2025 ProMaster runs the same 3.6L Pentastar V6 and is front-wheel drive, so the powertrain is not the decision. The body is. Start with what we have on the ground in used RAM cargo vans.

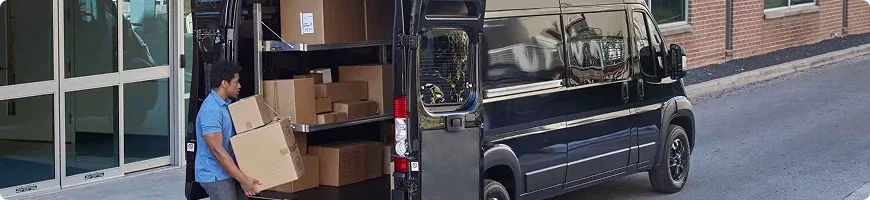

| What buyers ask | The 2025 answer |
|---|---|
| Engine and transmission | 3.6L Pentastar V6 with a TorqueFlite 9-speed automatic |
| Output | 276 hp, 250 lb-ft |
| Drive layout | Front-wheel drive on every model, which RAM calls class-exclusive |
| Vehicle class | Class 2 full-size van |
| Trim classes | Tradesman, SLT, SLT+ |
| Configurations | 16 wheelbase and roof combinations across the 1500, 2500 and 3500 chassis |
| Maximum towing | Up to 6,910 lbs on the strongest 2025 builds, not a rating every van carries |
| Maximum payload | 4,680 lbs, RAM’s own claim of a class-leading figure, and a ceiling for the range rather than a per-van rating |
| Fuel economy rating | None. The ProMaster sits above the weight class the EPA rates |
The mechanical side of that engine is covered on our ProMaster engine overview.
Read the two capability figures carefully. Both belong to the strongest configurations in the 2025 range, and the payload number is RAM’s claim rather than an independent measurement. Match the configuration to your load, then confirm the rating on the actual van.

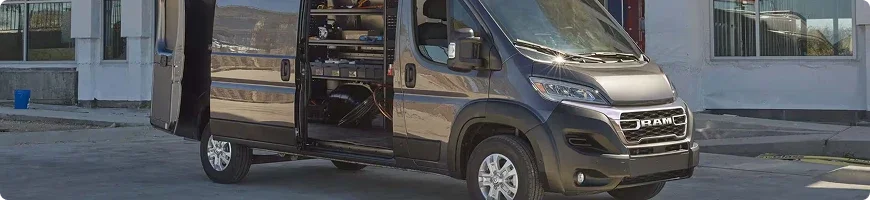

Every 2025 ProMaster is front-wheel drive, which RAM calls class-exclusive, and the reason it matters to a working buyer is the floor.
With no driveshaft running to a rear axle, the cargo floor sits lower and so does the step into the van. RAM points to both, the low cargo-load floor and the low step-in height, as driver benefits. In practice that means a shorter lift from the ground to the floor when you are loading, and a step in rather than a climb up. If you get in and out of a van 40 times a day, that is the difference you feel by Thursday.
The same layout is why the ProMaster turns tightly for its size and why the space between the wheel wells is unusually wide, which is the measurement that decides whether a pallet goes in square.

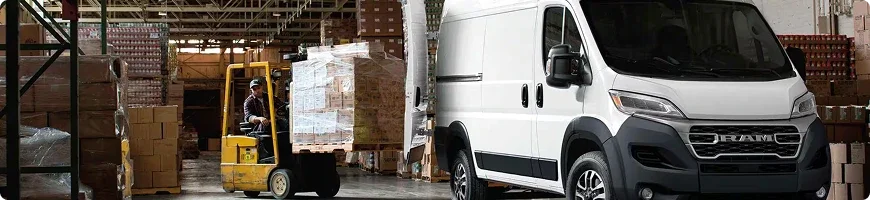

For 2025 the lineup ran to 16 wheelbase and roof combinations across the 1500, 2500 and 3500 chassis. Roofs came in low, high and super high, and wheelbases in 118, 136 and 159 inches. Beyond the standard cargo van there were extended-body versions, window vans and chassis-cab cutaways.
Three axes do the work. Chassis sets weight capability. Roof sets whether you can stand up inside. Wheelbase sets how long a load you can lay down flat.
| Chassis | Roof | Wheelbase | Best for |
|---|---|---|---|
| 1500 | Low roof | 118-inch | The tightest footprint on the ladder. Urban delivery, service calls with alley and garage access, drivers who park downtown and load through the back rather than working inside the van |
| 2500 | Low or high roof | 136-inch | The general-purpose middle. Trades carrying tools plus material, contractors who want shelving down both sides, operators needing more than the 1500 without the longest body |
| 2500 | High roof | 159-inch | Long loads with standing room. Plumbers, electricians and HVAC techs working out of the van, mobile service businesses, anyone racking pipe or lumber lengthwise |
| 3500 | High roof | 159-inch | The heaviest work in the group. Higher-weight payloads, dense cargo such as tile, fasteners or parts stock, small fleets standardizing on one high-capacity body |
| 3500 | Super high roof | 159-inch | Maximum interior height. Upfits and conversions where headroom decides the build, mobile workshops, tall equipment carried upright |
Cargo volume, interior dimensions, gross vehicle weight rating, payload and curb weight all shift from one build to the next, and a figure published for a different model year would not hold true of a 2025 van. Those specifics ride with each individual van, so if a dimension decides the purchase, work from the listing for that van and ask us to confirm it before you commit.

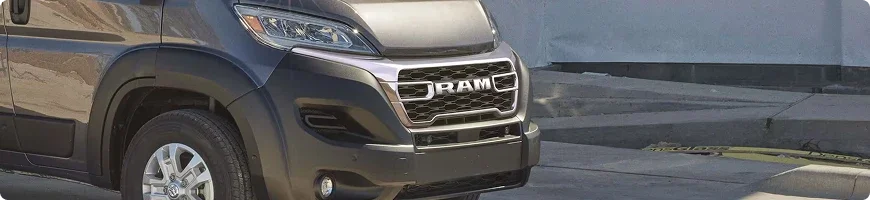

Work the three axes in order and the answer usually falls out fast.
Start with weight: The chassis is your ceiling on what you can legally and safely carry. Dense loads such as parts, fluids, tile, fasteners or stock point to a 3500. Bulky but light loads such as packages, cabinetry, insulation or fixtures usually leave a 1500 or 2500 as enough van.
Then decide whether you work inside it: If you stand in the van to pull stock, cut, assemble or fit a rack, you want a high or super high roof, and it is not a close call. If you load from the back door and drive, a low roof parks in more garages and drives better in wind.
Wheelbase last, and it is about length: Pipe, lumber, ladders and long trim need the 159-inch body to lie flat on the floor. If your longest item fits in a 136, the shorter van is easier to park and turn.
One thing first-time van buyers get wrong: it is easier to overbuy roof than to overbuy chassis. A too-tall van gets stopped by a parking structure and a drive-through; a too-heavy load gets stopped by the law.

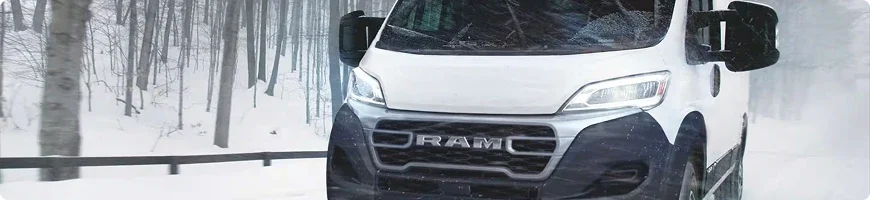

These vans are recent model year with low miles, which is what “like new” means on our lot. It is a description, not a certification, and here is exactly where the line sits.
The odometer: every van’s actual mileage is on its own listing, and we will read it to you before you drive up. There is no single number that describes all of them.
Factory coverage: a used van’s remaining coverage depends on the day it was first sold and on its mileage, so it differs van to van. Ask us about the specific van and we will tell you what is left on it before you buy.
Certified Pre-Owned: if factory certification matters to you, ask us whether a particular van qualifies before you decide. Our Certified Pre-Owned program sets out what it covers.
Our used specials change regularly, so see our used vehicle specials for what is discounted now.

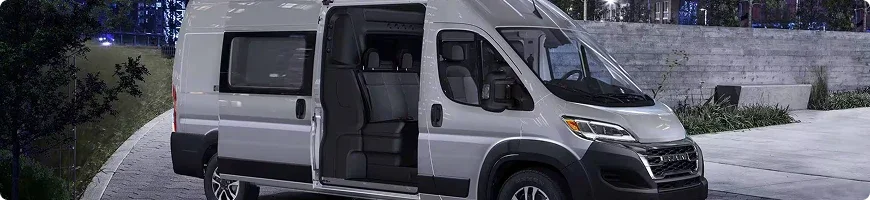

Equipment varies more on a used van than on almost anything else we sell, because these were ordered by businesses to do specific jobs. Two vans of the same chassis and roof can differ on shelving, partitions, seating, and what is on the dashboard.
For 2025 RAM offered:
Offered is the operative word. Which of those a van has is a question about that van, and its listing and window sticker are where the answer lives.
The same holds on driver assistance. RAM offered:
Whether a given van has any of them depends on how it was ordered.
Three things are confirmed at the model level. Electronic stability control is standard. Forward collision warning is standard. Lane departure warning is optional. Beyond those three, ask about the van rather than the model.
The National Highway Traffic Safety Administration (NHTSA) has not tested the 2025 ProMaster, so it holds no overall star rating. Not rated is not a poor score, only an absence of one. Ratings change as new tests are published, so check NHTSA.gov for the latest.

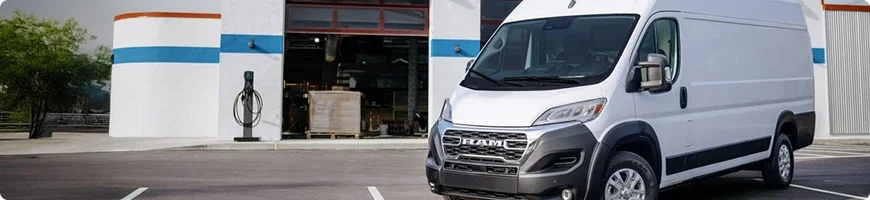

Most ProMasters leave here on a business purchase, and that is a different conversation from a retail sale. Our commercial department handles fleet and business buyers, and Business Link is the program built around commercial customers. If you are buying more than one van, or replacing on a schedule, start there rather than on the retail side.
Our financing team works across the full range of credit situations, and if a van you are replacing is part of the deal, our trade-in valuation tool settles that side first.
We are at 5500 S. Scatterfield Rd. in Anderson, and our hours and directions has the route from anywhere in Central Indiana. When the van needs work, our service department handles the vehicles we sell, and downtime is the expensive part of owning a work van.
A recent model year with low miles. It is our description of the stock, not a certification and not a warranty. Every van’s actual mileage is on its own listing, and we will confirm it for you before you make the drive.
RAM published a maximum payload of 4,680 lbs for the 2025 range, as its own claim of a class-leading figure. That is the ceiling for the strongest configuration, not a rating every van carries. Payload changes with chassis, roof, wheelbase and how the van was built, so confirm the rating on the specific van.
Up to 6,910 lbs on the strongest 2025 builds. As with payload, it is a range maximum rather than a number every van carries.
The 1500 is the light-duty end, the 2500 is the general-purpose middle, and the 3500 is for the heaviest loads. Choose on weight rather than on size: dense cargo such as tile, fluids or fasteners is what pushes you to a 3500, while bulky and light cargo usually leaves a 1500 or 2500 as enough van.
Only if you work inside the van. If you stand up in it to pull stock, cut, assemble or reach a rack, a high or super high roof pays for itself immediately. If you load through the back door and drive, a low roof fits more garages and handles better in a crosswind.
Yes, every one, and it matters for the floor. Without a driveshaft to a rear axle the cargo floor and the step-in both sit lower, which is a shorter lift when you load and a step rather than a climb when you get in.
There is no EPA rating. The ProMaster sits above the weight class the EPA rates, so no official figure exists for it.
That depends on the day it was first sold and on its mileage, so it differs from one van to the next. Ask us about the specific van and we will tell you what coverage remains before you buy.
Whether a commercial van qualifies depends on the vehicle, so tell us which one you are looking at and we will check it rather than leave you guessing. Our Certified Pre-Owned program sets out what it covers.
NHTSA has not tested it, so it carries no overall star rating, which is an absence of a score rather than a poor one. At the model level, electronic stability control and forward collision warning are standard and lane departure warning is optional. Everything else on the driver-assistance list was offered rather than fitted, so it is a question about the individual van.
Yes. Our commercial department handles business and fleet buyers, and Business Link is the program set up for commercial customers. If you are buying more than one, start there.
